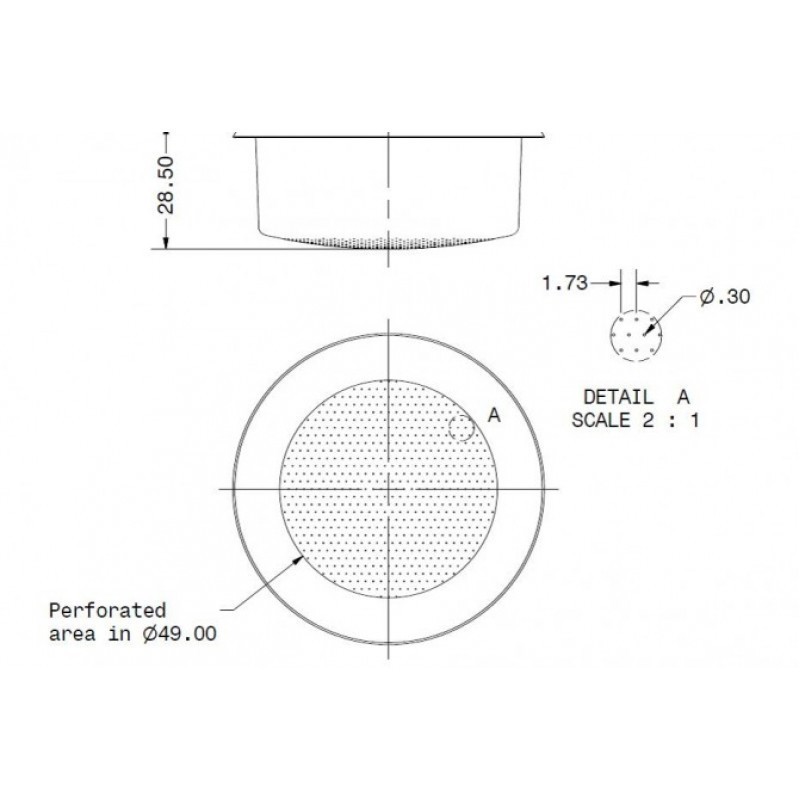

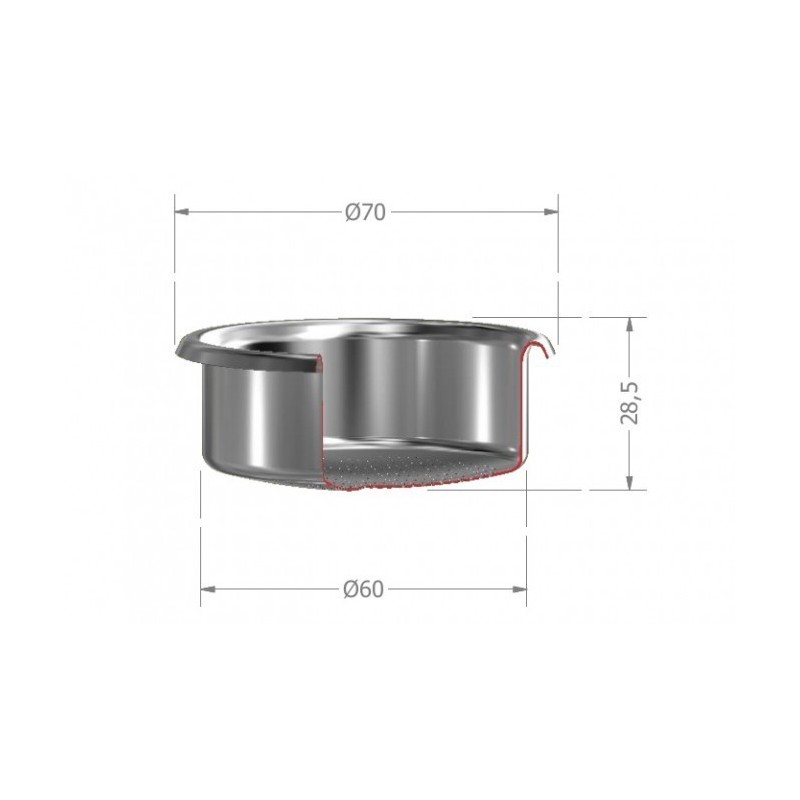

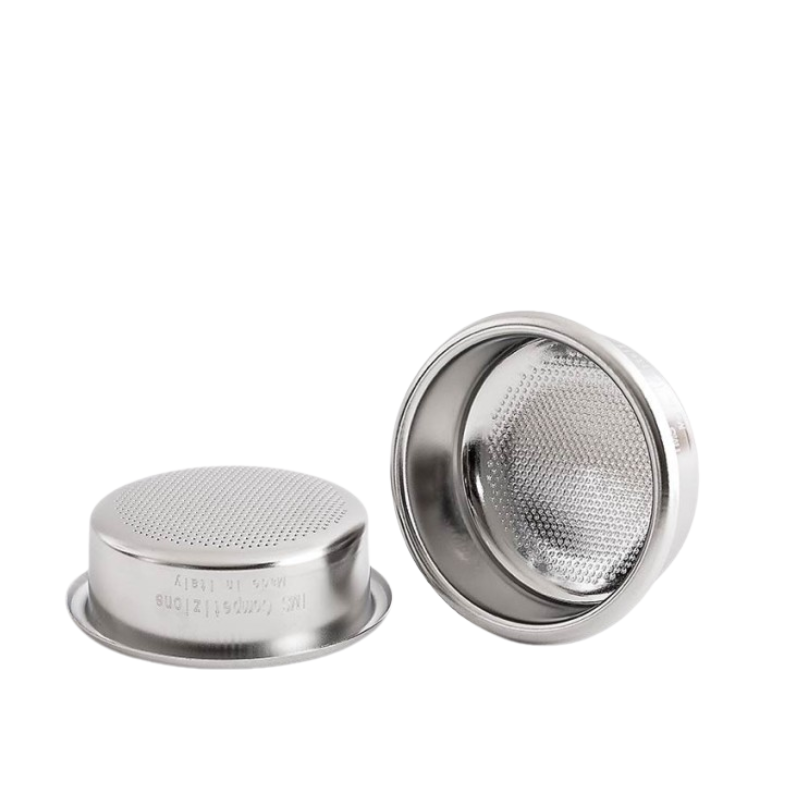

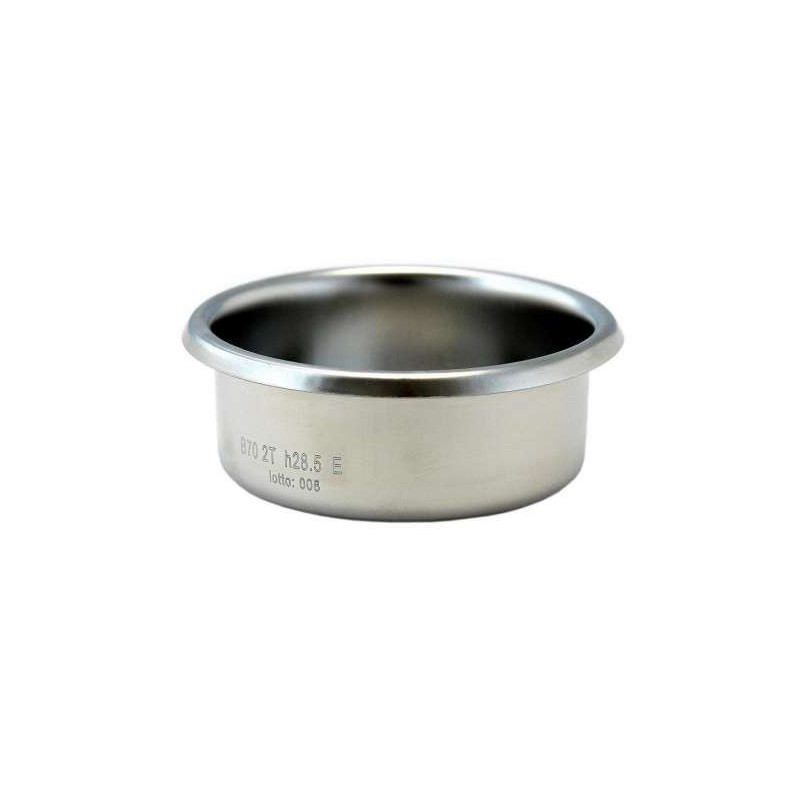

IMS Filter B70 2TC H28.5 E - Precision Filtration

The IMS Filter B70 2TC H28,5 E is a top-tier filter basket designed for larger double shots of espresso. With its expertly crafted hole pattern, this basket ensures that water flows evenly through the coffee grounds, resulting in a rich, full-bodied shot with excellent crema. It’s an ideal choice for baristas who want to achieve the best possible flavor and consistency in their espresso, making it a must-have tool for any serious coffee maker.

CODE	HEIGHT	DARK ROASTED	MEDIUM ROASTED	LIGHT ROASTED
B68 1t h24,5 E	24.5 mm	7.5/9.5 gr	8/10 gr	9.5/12 gr
B68 2t h24,5 M	24.5 mm	16/18 gr	17/19 gr	20/22.5 gr
B68 2t h26,5 E	26.5 mm	17/19 gr	18.5/21 gr	20.5/23 gr
B70 2tc h24 E	24 mm	14/16 gr	15/17 gr	18/21 gr
B70 1t h24,5 N	24.5 mm	7.5/9.5 gr	8/10 gr	9.5/12 gr
B70 2t h24,5 M	24.5 mm	16/18 gr	17/19 gr	20/22.5 gr
B70 2tc h26 E	26 mm	17/19 gr	18.5/21 gr	20.5/23 gr
B70 1t h26,5 E	26.5 mm	8.5/10.5 gr	9/11 gr	10.5/13 gr
B70 2t h26,5 M	26.5 mm	18/20 gr	19/21 g	22/24 gr
B70 2tc h28,5 E	28.5 mm	19/22 gr	22/25 gr	23/27 gr

All tests about the capacity of the filters were made using:

Dark: 80% Arabica 20% Robusta blend

Medium: 100% Arabica Brasile

Light: Ethiopia single origin
